Luxour 5000 : Details

Model
Number
Test
Report

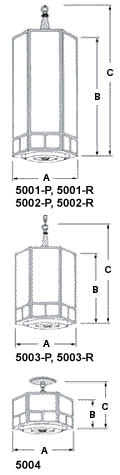

Dimensions Length
Overall
Wattage Circuits Weight Reflector
A B    Down    Up/Sides
5001-P YES 16" 29" 10' 1-500 3-60 2 35 lbs. Prismatic
Reflector
41 cm 74 cm 305 cm 15.8 kg
5001-R N/A 16" 29" 10' 1-500 R40 3-60 2 30 lbs. R40 Flood Lamp
41 cm 74 cm 305 cm 13.6 kg
5002-P YES 13" 24" 10' 1-300 3-60 2 25 lbs. Prismatic
Reflector
33 cm 61 cm 305 cm 11.3 kg
5002-R N/A 13" 24" 10' 1-300 R40 3-60 2 22 lbs. R40 Flood Lamp
33 cm 61 cm 305 cm 10 kg
5003-P N/A 13" 14" 6' 1-300 - 1 82 lbs. Prismatic
Reflector
33 cm 36 cm 183 cm 18 kg
5003-R N/A 12" 14" 6' 1-300 - 1 15 lbs. None
30 cm 36 cm 183 cm 6.8 kg
5004 N/A 12" 6" 9" 3-60 - 1 10 lbs. None
30 cm 15 cm 23 cm 4.5 kg
