Mission / 2400 : Details


Model
Number
Test
Report

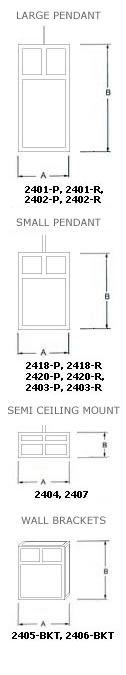

Dimensions Chain
Length
Wattage Circuits Weight Reflector
A B    Down    Up/Sides
2401-P YES 14" 29" 7.5' up to 500w
or CFL
6 X 60W
or 13w to 25w CFL
2 35 lbs. Prismatic
Reflector
35.5 cm 73.66 cm 2.86m 15.8 kg
2401-R NO 14" 29" 7.5' up to 500w
R40
6 X 60W
or 13w to 25w CFL
2 30 lbs. No
35.5 cm 73.66 cm 2.86m 13.6 kg
2402-P YES 12" 24" 8' up to 300w
or CFL
6 X 60W
or 13w CFL
2 25 lbs. Prismatic
Reflector
30.5 cm 61 cm 2.438m 11.3 kg
2402-R NO 12" 24" 8' up to 300w
R40
6 X 60W
or 13w CFL
2 22 lbs. No
30.5 cm 61 cm 2.438m 9.9 kg
2418-P NO 12" 18" 4.5' up to 300w
or CFL
3 X 60W
or 13w CFL
2 20 lbs. Prismatic
Reflector
30.5 cm 45.75 cm 1.371m 9.1 kg
2418-R NO 12" 18" 4.5' up to 300w
R40
3 X 60W
or 13w CFL
2 17 lbs. No
30.5 cm 45.75 cm 1.371m 7.7 kg
2420-P NO 14" 18" 4.5' up to 500w
or CFL
3 X 60W
or 13w CFL
2 30 lbs. Prismatic
Reflector
35.5 cm 45.75 cm 1.371m 13.6 kg
2420-R NO 14" 18" 4.5' up to 500w
R40
3 X 60W
or 13w CFL
2 25 lbs. No
35.5 cm 45.75 cm 1.371m 11.3 kg
2403-P NO 12" 14" 5' up to 300w
or CFL
N/A 1 25 lbs. Prismatic
Reflector
30.5 cm 35.5 cm 1.564m 11.3 kg
2403-R NO 12" 14" 5' up to 300w
R40
N/A 1 20 lbs. No
30.5 cm 35.5 cm 1.564m 9.1 kg
2404 NO 12" 6" 2" 3 X 60W
or 13w CFL
N/A 1 10 lbs. No
30.5 cm 15.2 cm 5.1 cm 4.5 kg
2407 NO 14" 6" 2" 3 X 100W
or 25w CFL
N/A 1 15 lbs. No
35.5 cm 15.2 cm 5.1 cm 6.8 kg
2405-BKT NO 12" 6" N/A 1 X 60W
or 13w CFL
N/A 1 5 lbs. No
30.5 cm 15.2 cm N/A 2.3 kg
2406-BKT NO 12" 14" N/A 2 X 60W
or 13w CFL
N/A 1 7 lbs. No
30.5 cm 35.5 cm N/A 3.2 kg
